Silver Reed Electronic Knitting Machine SK 860 + EC1 Pattern & PE1 Design Controllers

FOR SALE

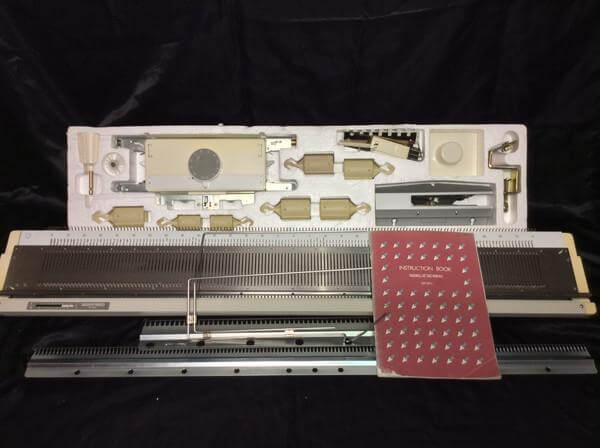

USED SILVER REED ELECTRONIC KNITTING MACHINE PACKAGE WITHOUT SR 860 RIBBER

SILVER REED SK 860 COMPUTERIZED KNITTING MACHINE + EC1 PATTERN CONTROLLER UNIT + PE 1 DESIGN CONTROLLER UNIT

THIS IS A MUST HAVE PACKAGE FOR NOVICE AND EXPERT KNITTERS

SK 860 KNITTING MACHINE



CREATE FINE INTRICATE KNITWEAR, FOR YOU AND YOUR FAMILY

THE 6 MM STANDARD GAUGE KNITTING MACHINES HAVE ALWAYS BEEN FAVOURITE FOR SPORT AND NOVELTY YARNS

NOW AS PART OF THE EXCITING NEW MODULAR SYSTEM, THE SK860 ALLOWS YOU TO EXPAND YOUR OPTIONS EVEN FURTHER WITH ELECTRONIC INNOVATION YOU NEVER THOUGHT

MACHINE SPECIFICATION

NEEDLE PITCH: 6mm

NUMBER OF KNITTING NEEDLES:  150

PATTERN SIZE

STANDARD: 60 STITCHES WIDE X 1000 ROW LONG
MAXIMUM (WITH PE 1: 200 STITCH WIDE X 1000 ROW LONG)
<><><>STITCH PATTERNS<><><>

FAIR ISLE
TUCK STITCH
TUCK STITCH IN COLOURS
SLIP STITCH IN COLOURS
SINGLE MOTIFS
WEAVING
PUNCH LACE
PLATING

EC 1 PATTERN CONTROLLER

THE EC 1 IS AN ELECTRONIC PATTERN CONTROLLER

IT ALLOWS YOU THE CAPABILITY OF CREATING PATTERNS

60 STITCH WIDE BY 150 ROW LONG

IT IS COMPATIBLE WITH SK 860

WHEN COMBINED WITH THE PE 1 DESIGN CONTROLLER,

YOUR PATTERN POSSIBILITY EXPANDS TO THE ENTIRE WIDTH OF YOUR KNITTING MACHINES NEEDLE BED.

PE 1 PATTERN CONTROLLER

PE 1 PATTERN CONTROLLER UNIT ALLOWS YOU TO JOIN DESIGNS TO CREATE LARGER PATTERN THAN THE STANDARD SIZE OF EC 1 PATTERN CONTROLLER.

A LIQUID CRYSTAL DISPLAY GIVES YOU INSTRUCTIONS EACH TIME YOU PRESS THE FUNCTION KEYS AND DISPLAYS INFORMATION ON KNITTING STATUS AND WARNINGS WHEN NECESSARY

IT ALSO SHOWS YOU UP TO 64 STITCHED AND 8 ROWS OF PATTERNS CURRENTLY STORED IN THE PE 1'S MEMORY. YOU CAN VIEW THE REMAINDER OF THE PATTERN USING THE SCROLL FUNCTION.

PATTERNS CAN BE STORED IN THE COMPACT MEMORY CARD FOR FUTURE USE AND YOU CAN ALSO TRANSFER DATA FROM ONE MEMORY CARD TO THE OTHER IN SECONDS.

AS AN ADDED BONUS YOU CAN ALSO KNIT MULTI-COLOUR JACQUARD

PE 1 SPECIFICATION

SCREEN IMAGE (LCD) : 146 X 14 mm

KEYBOARD: 24 KEY MEMBRANE PANEL

NET WEIGHT: 910g

DIMENSIONS (L X W X H): 230 X 165 X 46 mm

CAN SHIP WORLDWIDE
